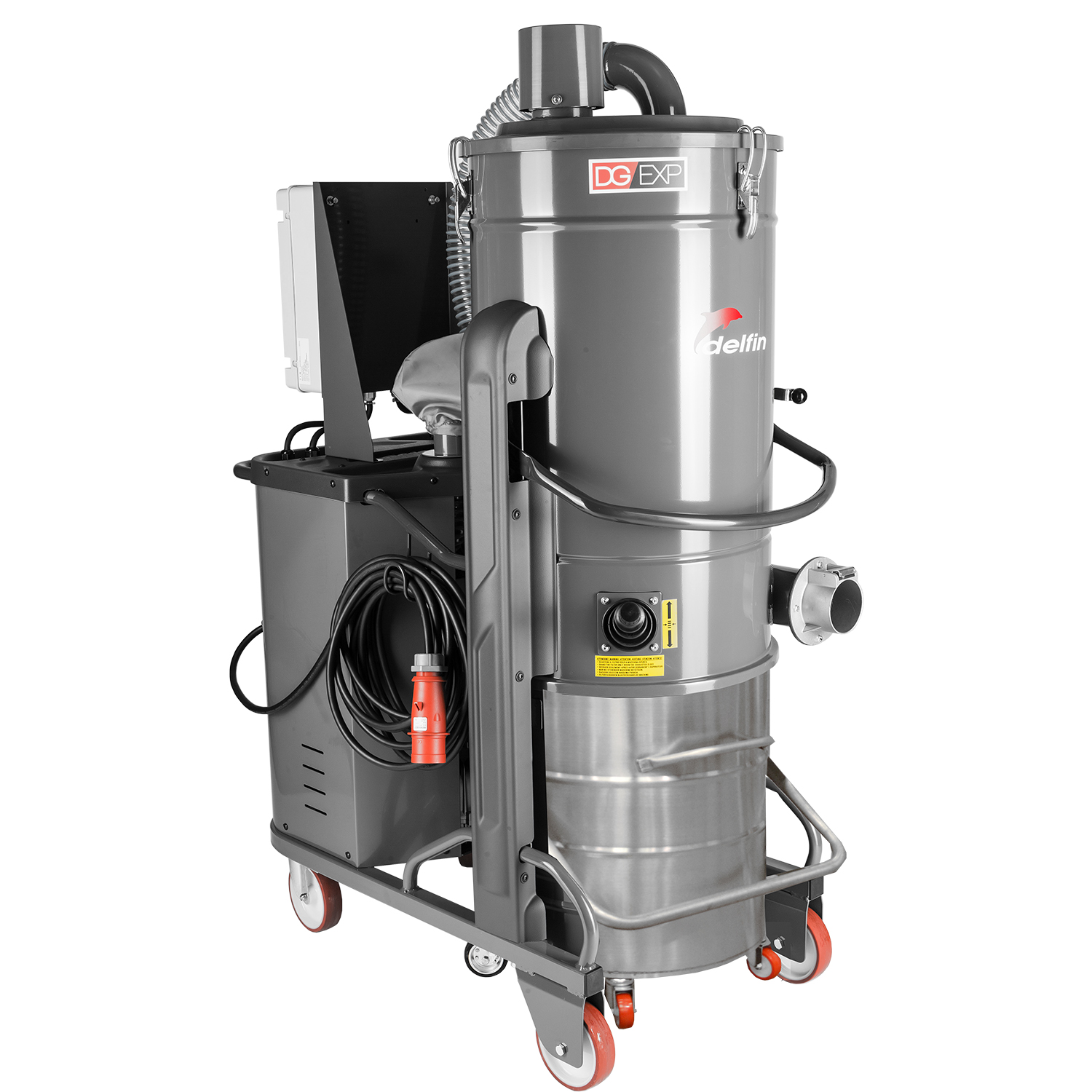

Delfin DG 86 AF D2 Industrial Vacuum

Explosion Proof Industrial Vacuum with HEPA Filtration Three Phase | DG 86 AF D2 may be the most compact NRTL certified explosion-proof vacuum among its power level and abilities.

Request Info Request Demo

FEATURES & HIGHLIGHTS

FOCUSED ON WHAT MATTERS

NRTL Certified for Class II, Division 2 – Heavy and Continuous Applications — It produces an exceptional airflow rate that may be divided up to 4 ways for speed cleaning (this varies by application). It’s mobile with a stainless steel collection tank as standard and an Antistatic Polyester, Class M filter with integrated cleaning system.

SPECIFICATIONS

DELFIN DG 86 AF D2 INDUSTRIAL VACUUM AT A GLANCE

  • System Voltage:

    230/460 V

  • Power:

    11.5 hp

  • Max Airflow:

    482.6 CFM

  • Max Water Lift:

    108.4 inH2O

  • Electrical Protection:

    IP Class 55

  • Vac Capacity:

    26 Gallons

  • Dimensions:

    47" x 26" x 69"

  • Weight:

    397 lbs

  • Sound Level:

    75 dBA

  • Suction Inlet:

    3"

    • DELFIN DG 86 AF D2 BENEFITS

    TO MAKE YOUR LIFE EASIER

    • Compact and portable
    • Constructed with powder coated steel
    • Side channel blower (continuous use / no maintenance up to 30,000 hours)
    • Stainless steel removable tank
    • Bonding and grounding
    • Pressure relief valve
    • Integrated cleaning system
    • Tangential inlet with cyclone filter protector

    DOCUMENTS

    FOR THE DELFIN DG 86 AF D2 INDUSTRIAL VACUUM
