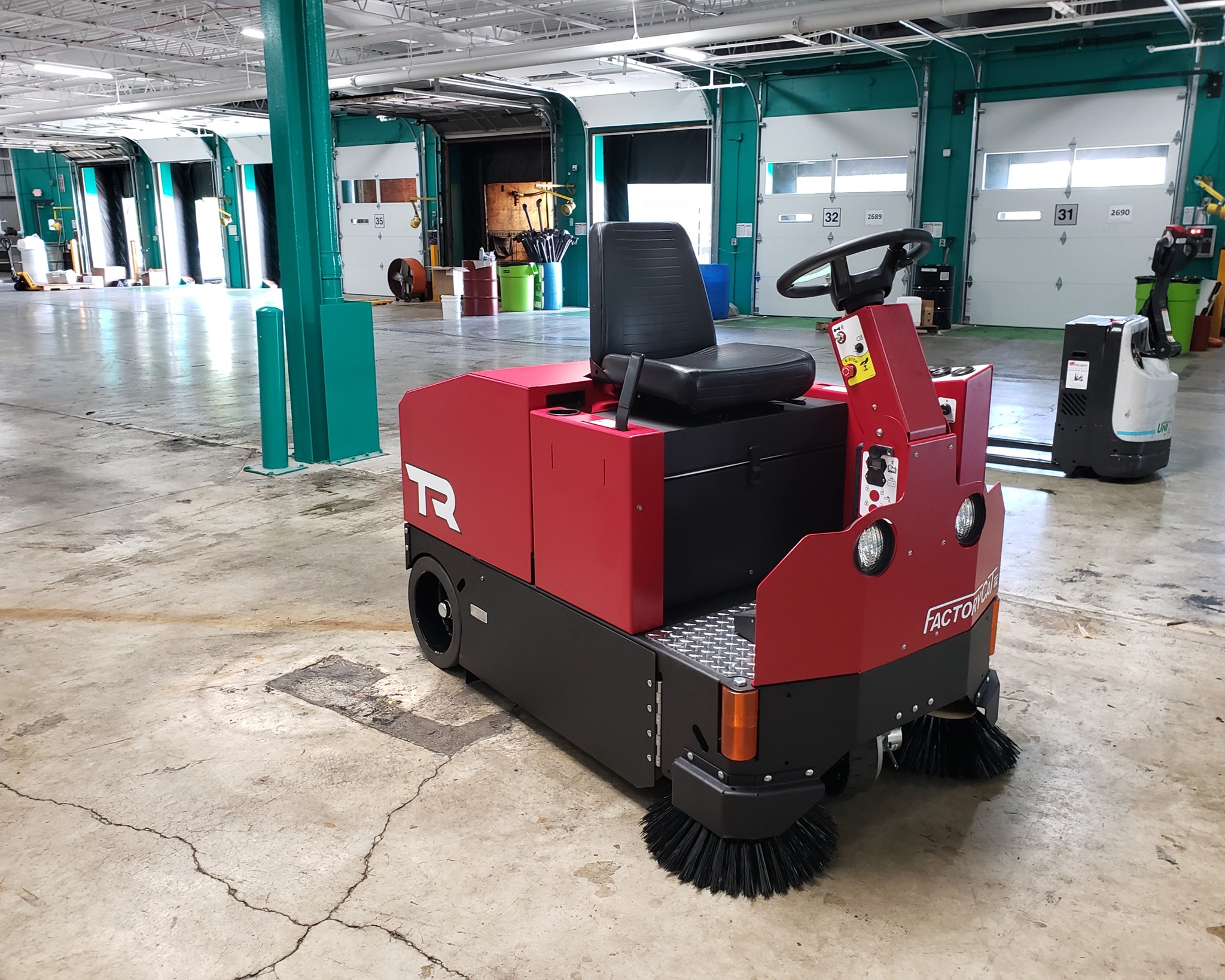

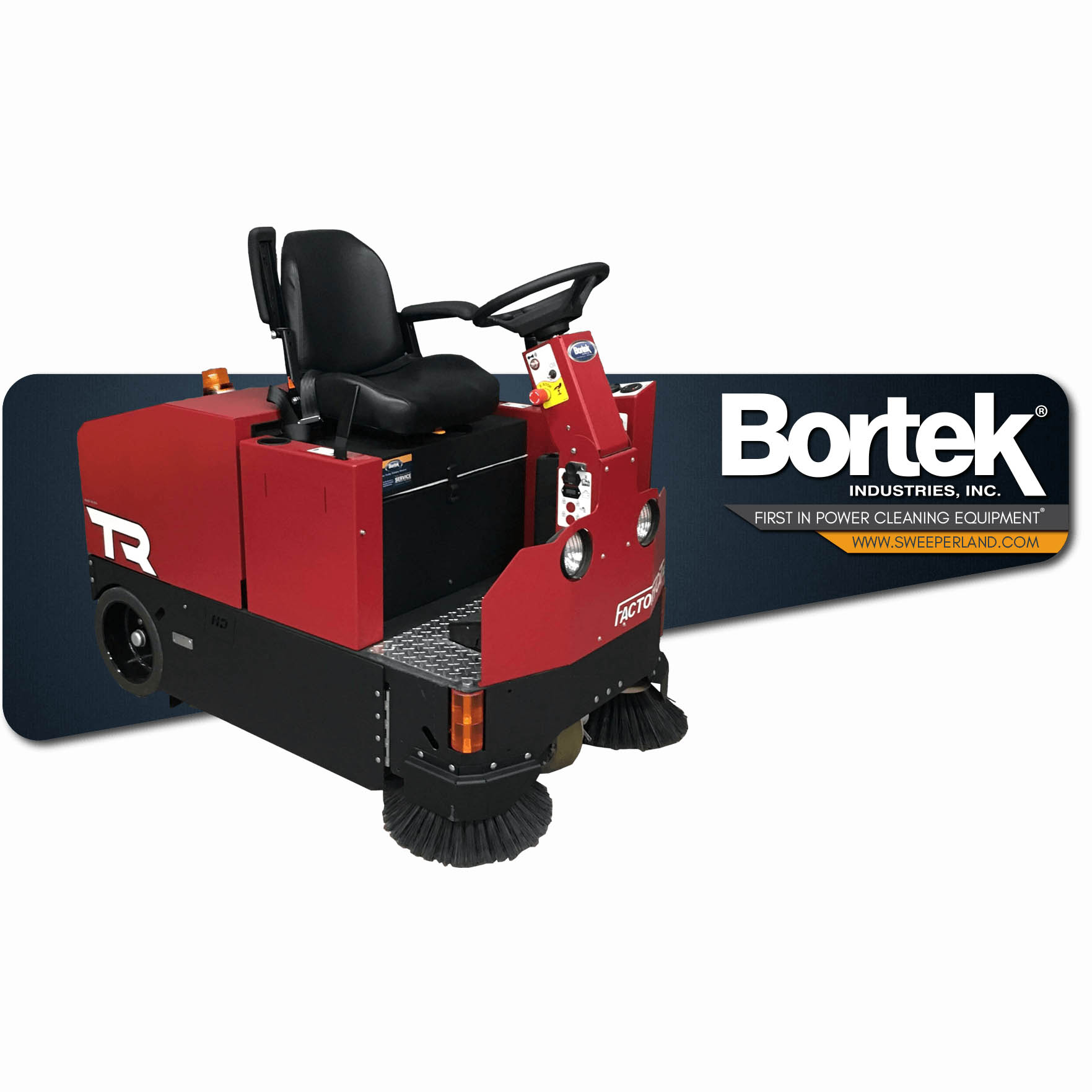

Factory Cat Model TR Floor Sweeper

The Factory Cat Model TR’s design was built from the success of the Model 34 walk behind sweeper. The TR’s side brooms sweep up dirt in the corners while a huge tubular sweeping broom under the machine sweeps up the dirt and debris from the floor and packs it into the steel hopper. Meanwhile, the second stage vacuums up the dust and traps it in a polypropylene felt baghouse filter. Factory Cat’s Industrial floor sweepers can pick up whole bags of cement at a time without leaving a trace of dust behind.

Request Info Request Demo
Cleaning Path
46"
Hopper Capacity
4.2 cu ft
Productivity (Theoretical)
75,000 sqft/hr

Proudly Made in the USA

FEATURES & HIGHLIGHTS

FOCUSED ON WHAT MATTERS

Easy to operate, maneuver and maintain, the Factory Cat Model TR can pick up nails, broken glass, metal shavings, dirt, wood and more without kicking out dust. A powerful vacuum sucks up any dust and filters it with a polypropylene felt “baghouse” filter. The self-adjusting, tubular main broom is built to pick up virtually any industrial waste, packing it into the all-steel hopper. Dual side brooms extend the cleaning reach and an on-board charger allows for convenient charging.

SPECIFICATIONS

FACTORY CAT MODEL TR FLOOR SWEEPER AT A GLANCE

  • Cleaning Path:

  • Run Time:

    Up To 7.0 Hours Battery Life

  • Hopper Capacity:

  • Sweep Method:

    Direct Throw

  • Productivity (Theoretical):

  • Productivity (Practical):

    59,406 sqft/hr

  • Size (L x W x H):

    64" x 37" x 50"

  • Weight (w/o) Batteries:

    825 – 875 lbs

  • System Voltage:

    12 VDC

  • Standard Battery:

    175 ah WET

  • Power:

    2.0 hp

  • Chassis Construction:

    3/16" Powder Coated Steel

    • MACHINE OVERVIEW

    STANDOUT FEATURES

    FACTORY CAT TR BENEFITS

    TO MAKE YOUR LIFE EASIER

    • 46″ sweeping path
    • 4.2 cubic feet debris hopper capacity
    • Baghouse Filter and Beater Bar provides unmatched particulate collection.
    • Theres no oil to change, brooms to reverse, fuel to spill, tanks to exchange, valves to grind.
    • All steel construction built to last even in the toughest applications.
    • High Performance motors provides an unmatched standard of cleaning.
    • Time is money- Serious Labor Savings with Factory Cat Sweepers

    Click to Compare Productivity to Your Current Cleaning Method!

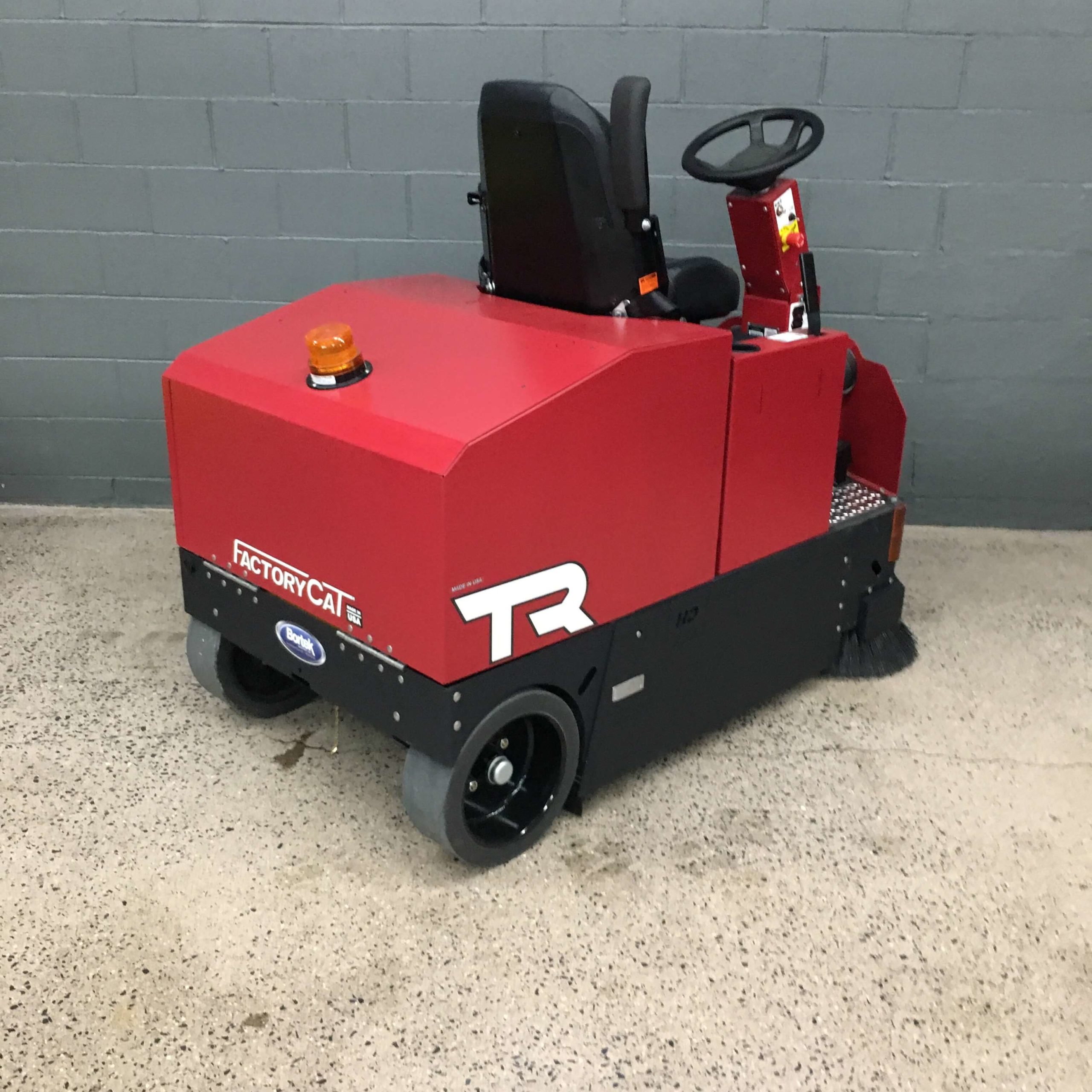

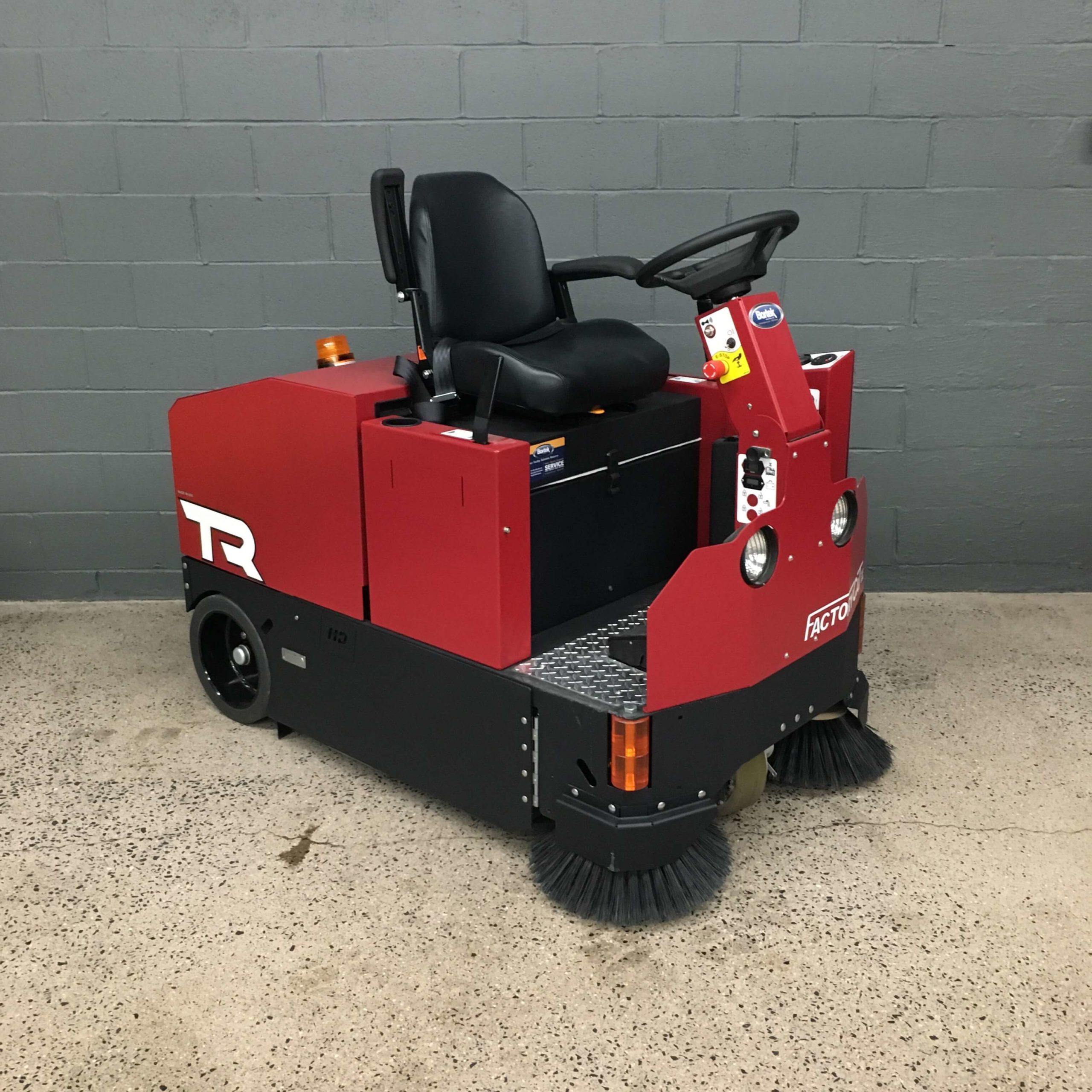

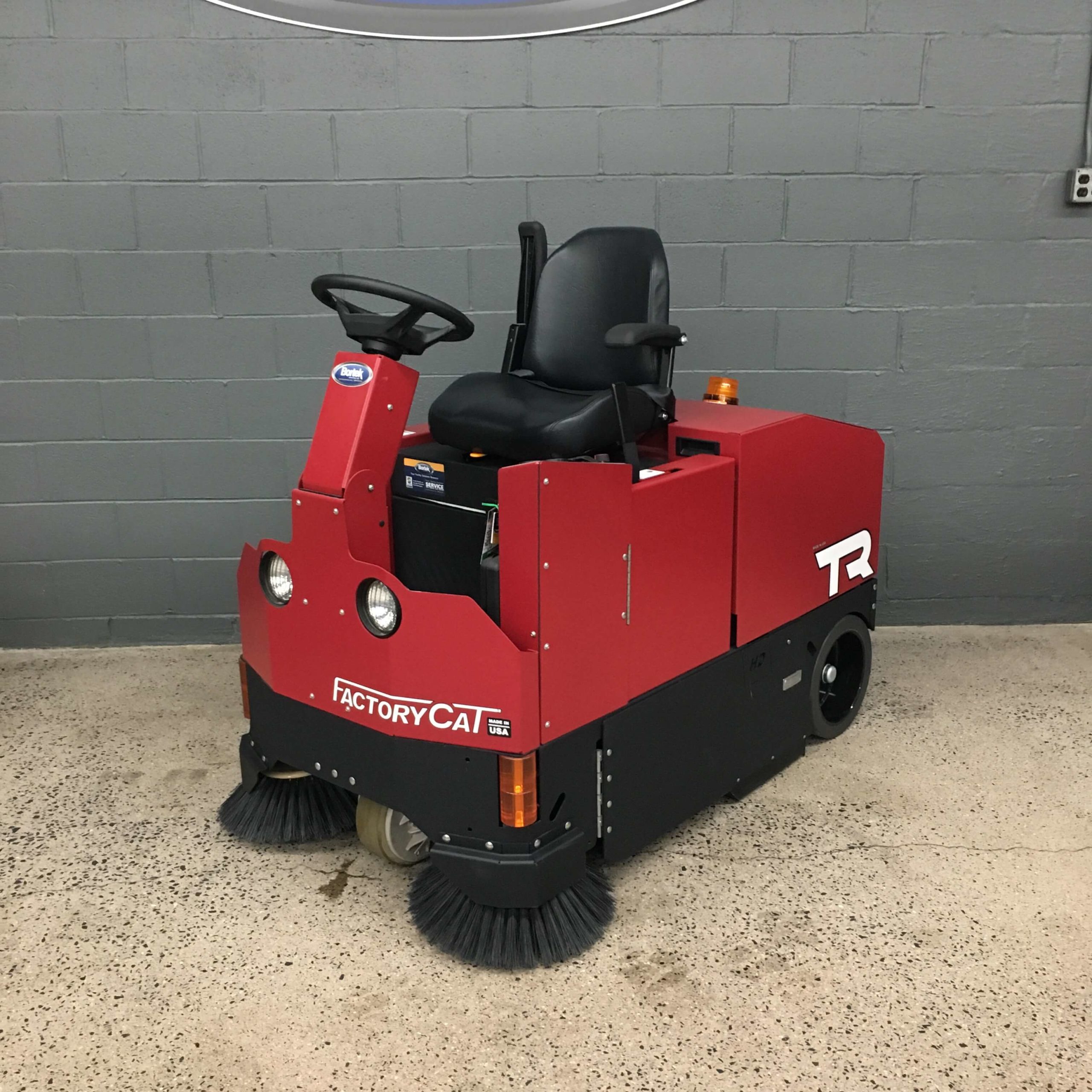

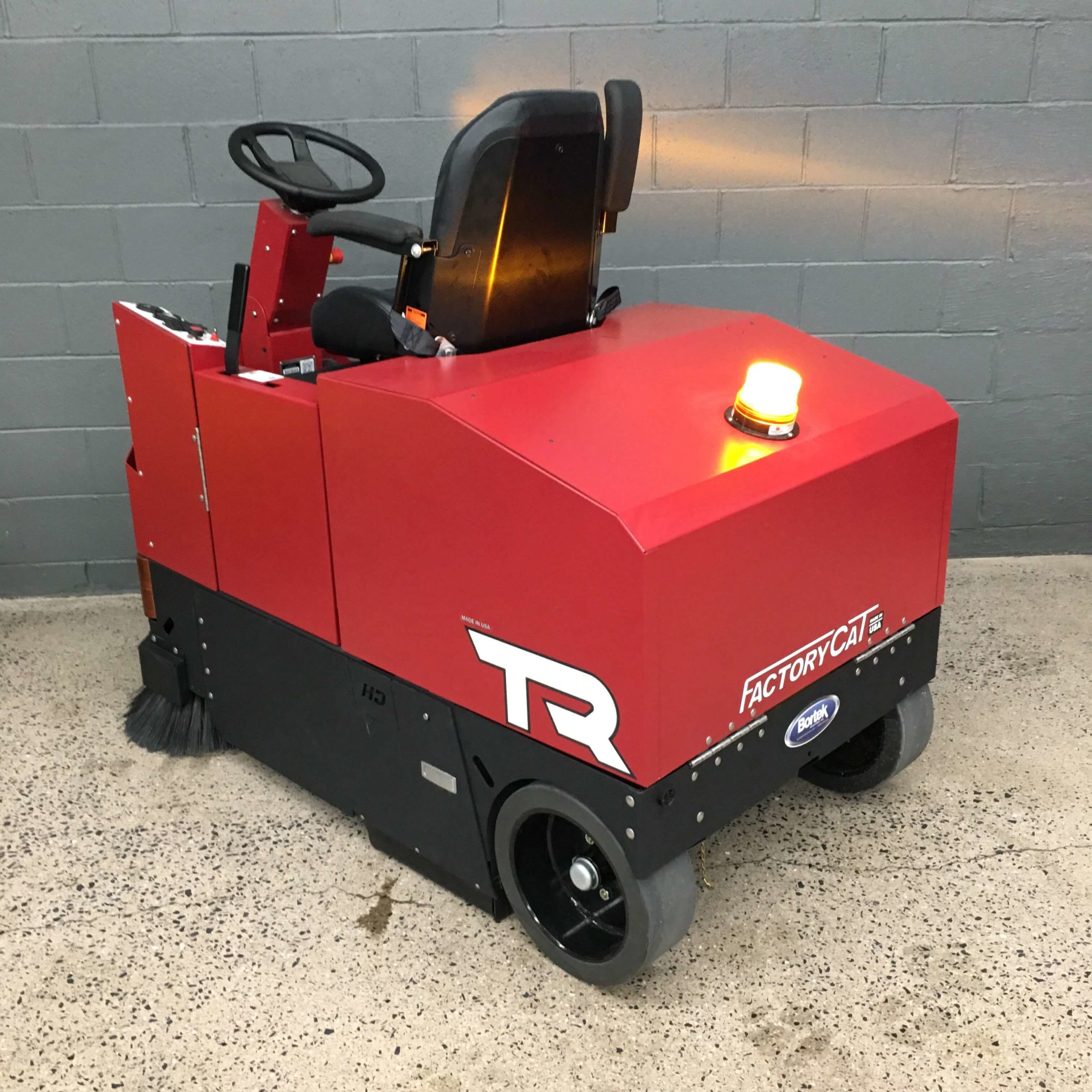

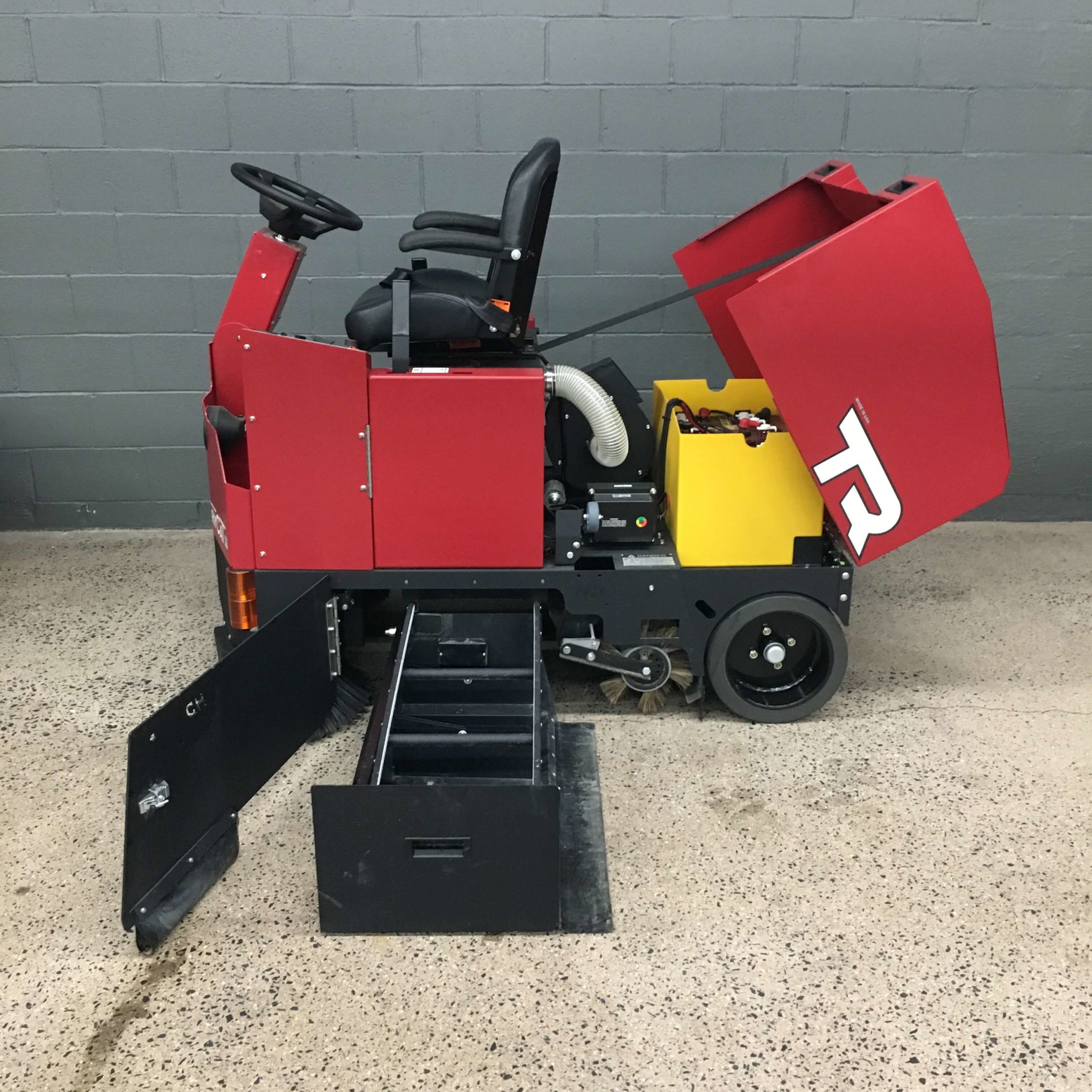

    ← See it from every angle →

      FLOOR SWEEPER RENTALS

      Rent Your Industrial Floor Sweeper
      Sweep dust and debris from your floors with the ease and comfort of a ride-on sweeper. We’ve got indoor and outdoor sweepers – all available to rent. From parking lots to warehouses and factories, there’s a cleaning machine for you, just like this Factory Cat Model TR Floor Sweeper.

      Choose Your Rental

      DOCUMENTS

      FOR THE FACTORY CAT MODEL TR FLOOR SWEEPER
